Datos del producto:
Pago y Envío Términos:
|
Entrada del alambre: | Entrada de ángulo recto del alambre | Anchura terminal: | 8.2 mm |
---|---|---|---|
Tipo: | Bloques de terminales montados sobre carriles, bloques de terminales eléctricos, conectores del bloq | Gama del alambre: | 26-8 |
Tensión nominal: | 600v | Corriente clasificada: | 50A |
color: | Negro | Aplicaciones: | Fuente de alimentación, control de la industria, automatización, transporte de carril, comunicación, |
Alta luz: | bloque de terminales del soporte del carril,bloque de terminales que pone a tierra |
600V 50A Din Rail Mounted Terminal Blocks 8.2mm Feed Through Connector for Electric
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter
Description Color |
Type |
Terminal Grey |
TR-6N |
End Cover Grey |
D-TR-3/16 |
Fixed Bridge |
FBI 10-8 Imax: 57A |
Insertion Bridge |
EB 10-8 Imax: 57A |
Separating Plate |
TS-K |
Partition Plate |
ATP-TR |
Zack Strip White |
ZB8 |
Screwdriver |
SZS 1.0×4.0 |
Rail Material |
aluminum |
Dimensions mm |
8.2/42.5/2 |
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
Screw / Torque Nm |
M4 / 1.5-1.8 |
Stripping Length mm |
10 |
IEC Technical Data |
|
Max. Load Current / Cross Section A / mm2 |
57 / 10 |
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
Surge Voltage Category |
Ⅲ |
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

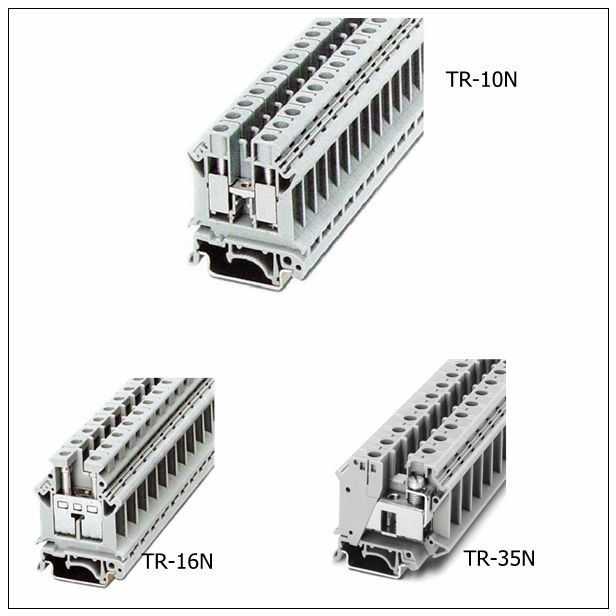

Drawing Photo
